Choose CECI Composite Insulator for Power Engineering

Product Details

Insulator Model	Rated Mechanical Failing Load (kN)	Nominal Structure Height (mm)	Nominal Diameter (mm)	Creepage Distance (mm)	Connection Type Mark (mm)	Tensile Load Test (kN)	Lightning Impulse Withstand Voltage (kV)	Power Frequency Wet Withstand Voltage (kV)	Power Frequency Flashover Voltage (kV)	Radio Interference Voltage at 10kV, 1MHz (μV)
UG70B146/450D	70	146	280	450	16	35	120	45	130	50
UG100B146/450D	100	146	280	450	16	50	120	45	130	50
UG120B146/450D	120	146	280	450	16	50	120	45	130	50
UG160B155/450D	160	155	280	450	20	80	130	50	130	50
UG210B170/450D	210	170	280	450	20	105	130	50	130	50
UG240B170/450D	240	170	280	450	24	120	130	50	130	50
UG300B195/480D	300	195	450	480	24	150	150	50	130	50
UG420B205/560D	420	205	450	560	28	210	160	50	130	50

Product Photos

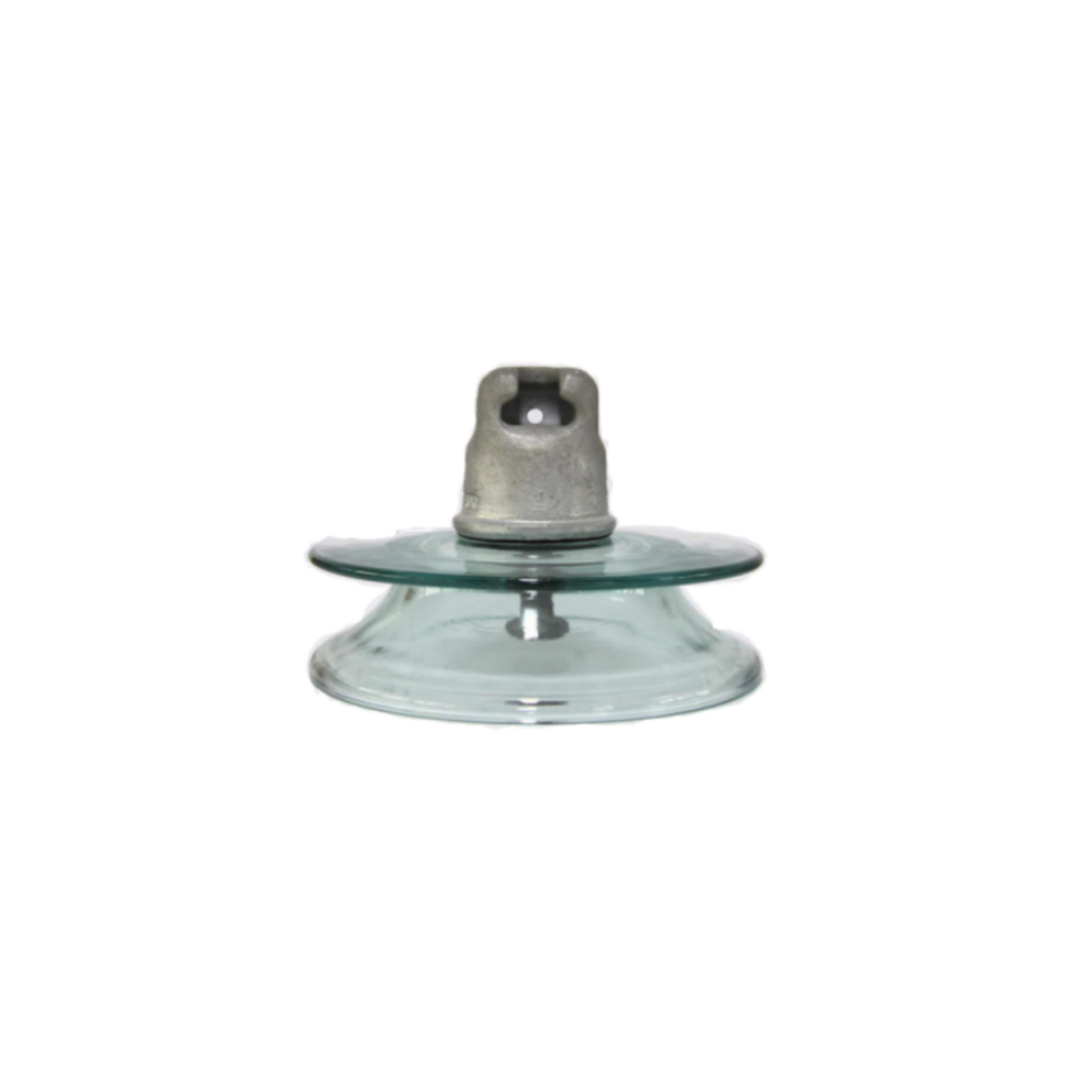

double umbrella glass insulator

Why Choose Us

20 years of production experience and high-end equipment and technology;
Professional technical expert team and excellent customer service;
Our company has high-quality supplier resources, which can provide customers with high-quality raw materials and other supporting services;
OEM and ODM both are available in CECI.

CECI Factory
